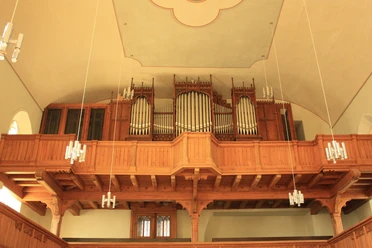

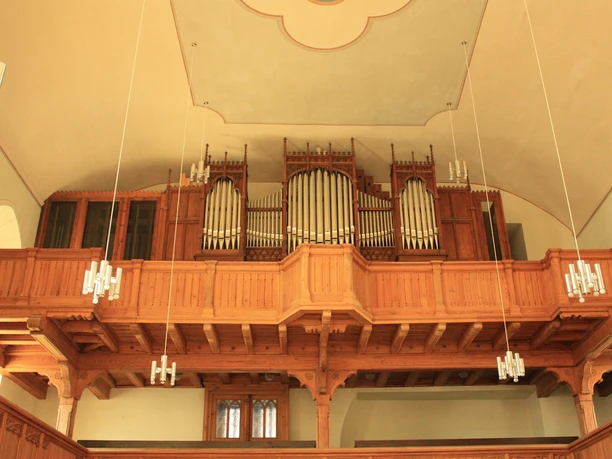

Kreutzbach organ in the Laurentiuskirche Markranstädt

Richard Kreutzbach (1839 - 1903), son and employee of company founder Urban Kreutzbach (1796 - 1868), built the organ in 1886 with pneumatic action. With two manuals and pedal, the organ originally had 23 stops.
Playing aids: Pedal coupler from the 1st manual, manual coupler II - I, swell, collective stops: Piano, Mezzoforte and Fortissimo stops.
The modifications and specification changes made in 1925 and 1958 - 1963 were returned in 2006 by the company Mitteldeutscher Orgelbau A. Voigt GmbH Bad Liebenwerda. In this context, a Trompete 8' was added to the specification of the Hauptwerk. II/24.

Text: Klaus Gernhardt

- WC available for visitors

Disposition

1. Manual                                                                 2. Manual (Schellwerk)

 1.         drone                              16'                 12.    Violin Principal           8'
 2.        Principal                               8'                  13.    Salizional                   8'
 3.       Viola di Gamba                   8'                  14.    Covered                     8'
 4.       Hollow flute                              8'                 15.    Aeoline                      8'
 5.       Reed flute                              8'                  16.    Principal                    4'
 6.        Principal                               4'                   17.    Flauto traverso         4'
 7.       Gemshorn                            4'                   18.    Piccolo                      2'
 8.        Octave                                 2'                  19.    Oboe                         8'
 9.        Cornett  4x                                          20.    Harmonia aetherea 3-fold
10.       Mixture  4-fold
11.       Trumpet                           8'  (since 2007)

Pedal

21.      Trombone                            16'
22.      Subbass                              16'
23.     Violonbaß                           16'
24.      Principal                              8'

Manual coupler  II - I, pedal coupler  I, piano, mezzoforte, tutti, trigger

Sources:
- www.musiksommer-markranstaedt.de
- Organ file of the regional church of Saxony
