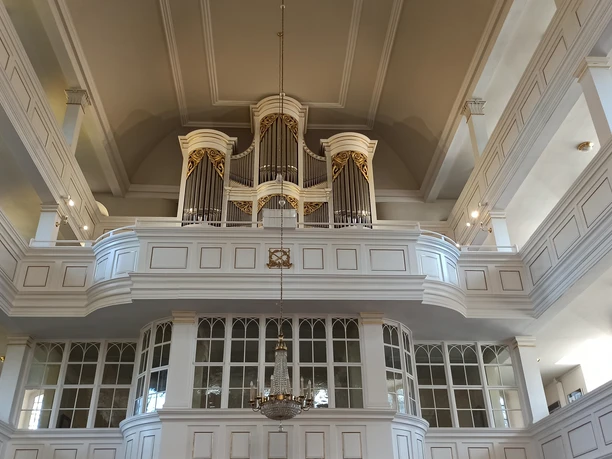

Kreutzbach organ in the town church of St. Nicolai Waldheim

Originally built in 1843-48 by Urban Kreutzbach (1796 - 1868) as a two-manual mechanical organ with 34 stops, Richard Kreutzbach (1839 - 1903) carried out a major rebuild in 1891. II/29 In this context, a new console was built and the mechanical actions were replaced by pneumatic controls. The keyboard ranges were extended to C - f''' and in the pedal from C - d'. However, the Crecendo roll installed in this context was removed again in 1952. In 1928, the organ was redesigned again and fitted with an electric blower. In 1989, a general overhaul was carried out by the company Orgelbau Hermann Eule, Bautzen.

Text: Klaus Gernhardt

Disposition

Main division (C - f"')

1 Bordun 16'
2 Principal 8'
3 Flauto 8'
4 Rohrflöte 8'
5 Octave 4'
6 Gedackt 4'
7 Quinte 2 2/3'
8 Octave 2'
9 Recorder 2'
10 Terz 1 3/5'
11 Quinte 1 1/3'
12 Octave 1'
13 Mixtur 3 fach
14 Trompete 8'

Oberwerk (C - f"')

15 Principal 8'
16 Double Flute 8'
17 Quintade 8'
18 Salicional 8'
19 Octave 4'
20 Reed Flute 4'
21 Nassat 2 2/3'
22 Octave 2'
23 Schwiegel 1'
24 Mixtur 3 fach
25 Zink 2 fach


Pedal (C - d')

26 Subbass 16'
27 Violonbass 16'
28 Principalbass 8'
29 Zartbaß 8'
30 Trombone 16'

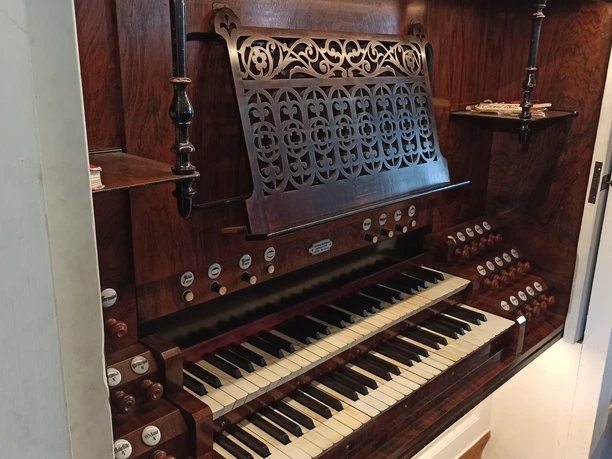

Playing aids:

Manual coupler, pedal coupler, wide chorus, Principal chorus, Pleno, (all as push buttons with their own release)
